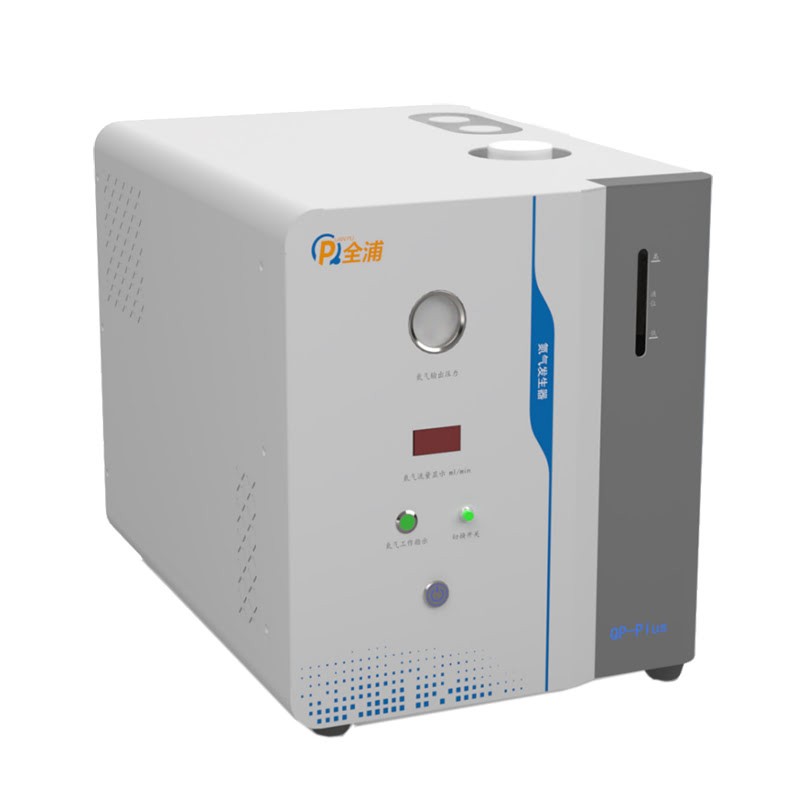

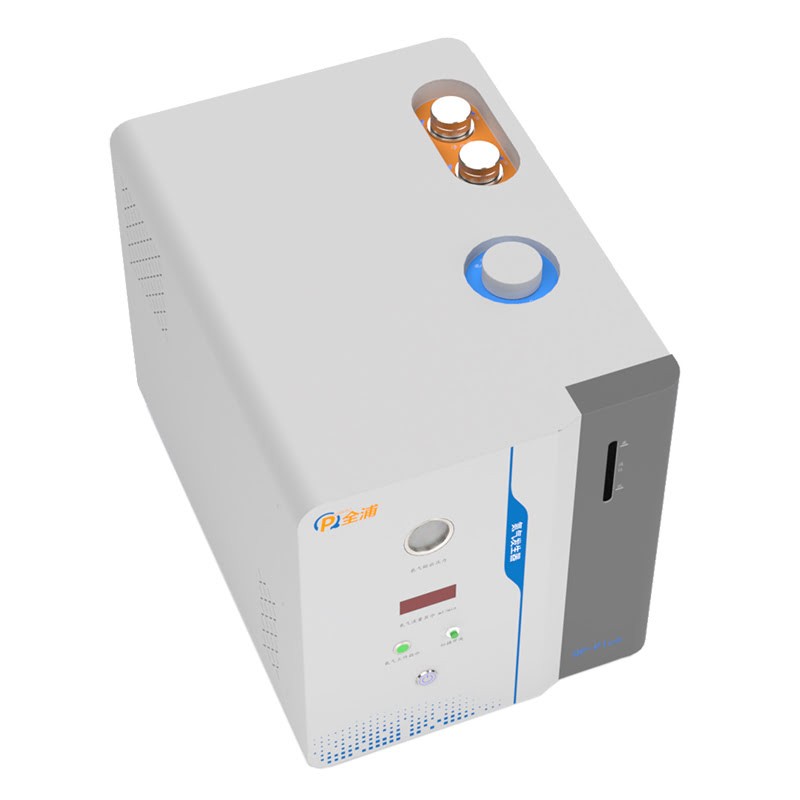

Self-developed dual-cathode stainless steel electrolytic separation cell features smooth electrolyte circulation, enabling simultaneous nitrogen generation and oxygen exhaust via electrolysis. It boasts a large electrolysis area, low cell temperature, high gas output and superior nitrogen purity.
All gas pipelines are made of stainless steel tubes (electropolished and ultrasonically cleaned) to effectively improve gas quality.
Equipped with a unique anti-backflow device to completely eliminate electrolyte backflow inside the instrument.
An independent extra-large liquid storage tank efficiently reduces the operating temperature of electrolyte and extends the water refilling interval.
The instrument is fitted with voltage and current stabilizing modules to deliver stable output flow rate. An automatic tracking system enables fully automatic adjustment of nitrogen flow according to actual consumption, with constant purity supporting continuous long-term operation.
It is integrated with two automatic functions: gas circuit shutdown upon power failure, and automatic gas supply switching once purification is completed.
Stainless steel drying tubes are adopted to avoid damage caused by component aging and eliminate abrasion risks arising from repeated disassembly.
A vent valve is installed. When replacing desiccants, pressure relief via disassembly of the hydrogen outlet is unnecessary; simply open the vent valve for quick and convenient operation.
| Instrument model QP-Plus | N3 | N5 | N1L | N3P | N5P |
| Maximum output flow rate (ml/min) | 300 | 500 | 1000 | 300 | 500 |
| Nitrogen purity | 99.999% | ||||
| Output pressure | 0-0.5 MPa (factory setting 0.4 MPa) | ||||
| Export specifications | M8×1, aperture φ3.3 | ||||
| Drying method | Adsorption drying/silica gel | ||||
| Air source quality requirements | Oil-free, dry, and clean; particulate matter <0.5µm | Built-in | |||
| Air source pressure requirements | 0.5-0.6MPa | Built-in | |||
| Air source flow rate requirements | 3L/min | 5L/min | Built-in | ||
| Air source inlet specifications | M8×1, aperture φ3.3 | Built-in | |||
| Working power supply | 220V/50HZ | ||||
| environmental conditions | Ambient temperature: 0-35℃; Relative humidity: ≤85%; No large amounts of dust or corrosive gases; Good ventilation; No direct sunlight. | ||||
| Maximum power | 80W | 120W | 250W | 430W | 480W |
| Dimensions: Length × Width × Height (mm) | 400mm*220mm*385mm | 550mm*375mm*425mm | |||
| Weight | 16KG | 28KG | 35KG | ||
Nebulizing Gas
Curtain Gas
Shield Gas
Sheath Gas
Electrospray Gas
APCI Gas
Jet Stream Gradient
Nuclear Magnetic Resonance Spectrometers (NMR)
Thermal Analyzers (TGA/DSC)
Sample Concentrators
Evaporative Light Scattering Detector (ELSD)
Corona Detectors
Charged Aerosol (CAD)
Sample Evaporators
Cell Incubators
IVF Stem Cell Incubators
Mask Aligner
Fume Hood / Cabinet Purge
3D Printer Inerting
Glove Box Purge
