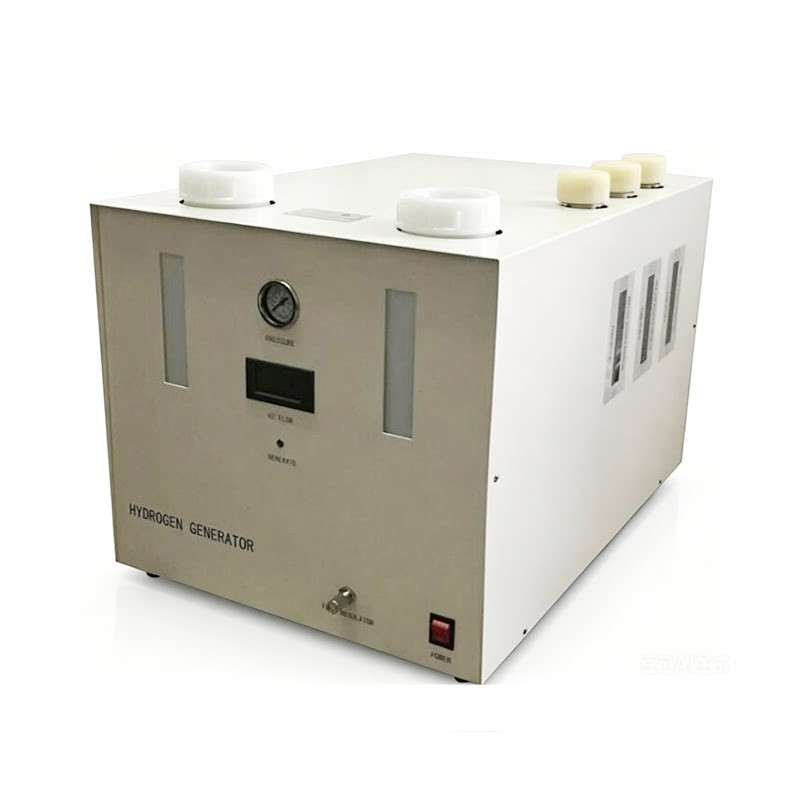

The electrolytic cell adopts the world’s state-of-the-art solid polymer electrolyte hydrogen production technology, which ensures the oxygen content of the produced hydrogen is less than 0.1 ppm.
It uses pure water as the electrolyte and titanium metal for electrodes.
Upon power supply, hydrogen is generated at the cathode and oxygen at the anode. The oxygen is vented to the atmosphere, while hydrogen flows into a gas-water separator to separate from water.
After thorough drying through a drying tube, hydrogen is discharged from the gas outlet.This instrument is equipped with a high-sensitivity fuzzy automatic tracking control system.
It produces hydrogen only when gas is demanded and stops generating gas when not in use, enabling automatic constant pressure and constant current operation.
The pressure stability accuracy is controlled within less than 0.001 MPa, guaranteeing the instrument delivers hydrogen with high purity, stable pressure, safe and continuous output.
| Instrument model | QPH-Plus-3000C |
| hydrogen purity | ＞99.999％ |
| Maximum output flow | 3L∕min |
| Output pressure | 0.4Mpa |
| Pure water available | Deionized water or double-distilled water with a resistance greater than 2 MΩ |
| Maximum power | 1200W |
| Pressure stability | <0.001Mpa |
| Power supply | 220V±10％﹔50HZ±5％ |
| Overall dimensions | 650×350×450mm |
| Weight | 50Kg |
Combustion hydrogen for FID, FPD, NPD detectors of Gas Chromatograph (GC)
High-purity carrier & auxiliary hydrogen for GC-MS
Gas supply for headspace samplers
Flame fuel gas for Atomic Absorption Spectrometer (AAS)
Auxiliary gas for Inductively Coupled Plasma (ICP)
High-purity hydrogen supply for various elemental analyzers
Catalytic hydrogenation and reduction experiments
Preparation experiments of new and nanomaterials
Teaching & testing experiments for environmental and food majors
Detection of pollutants in water and soil
Pesticide residue analysis of pharmaceuticals and herbal medicines
Trace impurity testing of medical devices
