Compact and lightweight. It can replace high-pressure hydrocarbon-free gas cylinders and save laborious cylinder handling work.
Easy to operate with high automation. Simply connect the air source and turn on the power supply. Zero air will be generated once the catalytic temperature reaches the set value.
Reliable safety performance. Equipped with a two-stage over-temperature protection system inside, which automatically cuts off power when overheating occurs.
Multi-stage precision filters are built in to guarantee the air entering the catalytic chamber is dry, clean and oil-free, avoiding secondary contamination of hydrocarbon-free air.
All internal gas pipelines adopt internally and externally electropolished 316 stainless steel tubing.
Stainless steel drying tubes are adopted to avoid damage caused by aging and wear risks from disassembly. The modular design facilitates visual inspection and easy disassembly.
A vent valve is fitted. There is no need to disassemble the hydrogen outlet for pressure relief when replacing desiccants; just open the vent valve directly for quick and convenient operation.

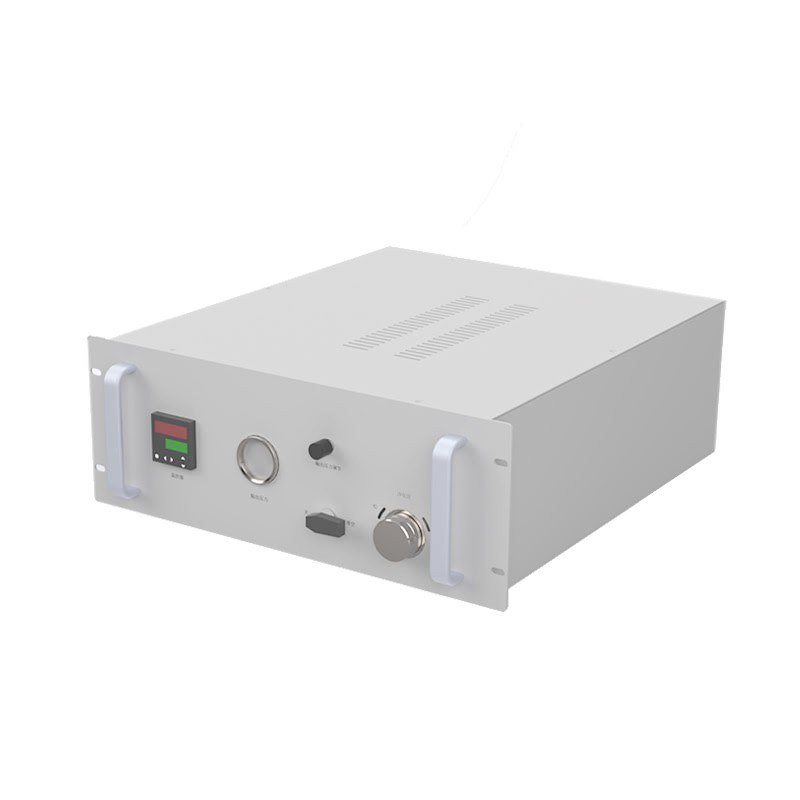

| Instrument model | QPAL-1000 (4U) | QPAL-5000 (4U) | QPAL-1000L (3U) | QPAL-5000L (3U) |
| Maximum output flow | 1L/min | 5L/min | 1L/min | 5L/min |
| Output zero hydrocarbon content | 0.1ppm | |||
| Output pressure | 0.4 Mpa | |||
| Export specifications | 1/8 aperture φ3.3 | |||
| Air source quality requirements | Oil-free, dry, and clean; particulate matter <0.01µm | |||
| Air source pressure requirements | 0.5-0.6MPa | |||
| Air source flow rate requirements | >3L/min | >10L/min | >3L/min | >10L/min |
| Air source inlet specifications | Φ6 quick connector | |||
| Working power supply | 220V/50HZ | |||
| Environmental conditions | Ambient temperature: 0-35℃; Relative humidity: ≤85%; No large amounts of dust or corrosive gases; Good ventilation; No direct sunlight. | |||
| Maximum power | 350W | |||
| Dimensions: Width × Height × Depth (mm) | 435 ×175×505 mm | 435×130×385 mm | ||
| Weight | 16KG | 12KG | ||
Zero-grade hydrocarbon-free air for GC FID, FPD, NPD detectors
High-purity auxiliary gas for GC-MS analysis
Supporting clean air for headspace samplers and online GC monitoring equipment
Online continuous VOCs monitoring of ambient air and factory flue gas
Trace organic pollutant detection in water, soil and waste gas
Stationary pollution source exhaust automatic monitoring matching gas source
Food and agricultural product pesticide residue chromatographic testing
Traditional Chinese medicine, pharmaceutical raw material trace impurity analysis
VOC detection of medical devices and food packaging materials
Environmental, chemical and food major teaching and analytical experiments
Atmospheric simulation, catalytic oxidation related research tests
Nanomaterial and trace organic analysis laboratory blank gas supply
